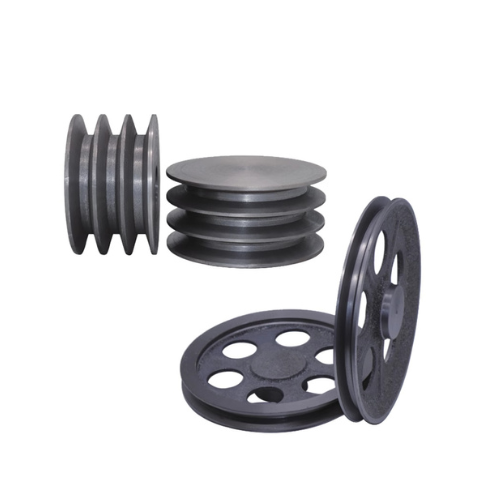

V-belt Pulley (cast iron)
- 111
V-belt Pulley (cast iron)
The models of V-belts include: regular O A B C D E 3V 5V 8V, regular reinforced AX BX CX DE X 3VX 5VX 8VX, narrow V-belt SPZ SPA SPB SPC, and strong narrow V-belt XPA XPB XPC.
Each model of the V-belt specifies the cross-sectional size of the V-belt. The cross-sectional size of the A-type V-belt is: the top width is 13mm and the thickness is 8mm.
The cross-sectional size of the B-type V-belt is: the width of the top pulley is 17mm, and the thickness is 10.5mm.
The cross-sectional dimensions of the C-shaped V-belt are: the top width is 22mm and the thickness is 13.5mm.
The cross-sectional dimensions of the D-shaped V-belt are: top width 21.5mm, thickness 19mm; The cross-sectional dimensions of the E-shaped V-belt are: the top width is 38mm and the thickness is 25.5mm.
